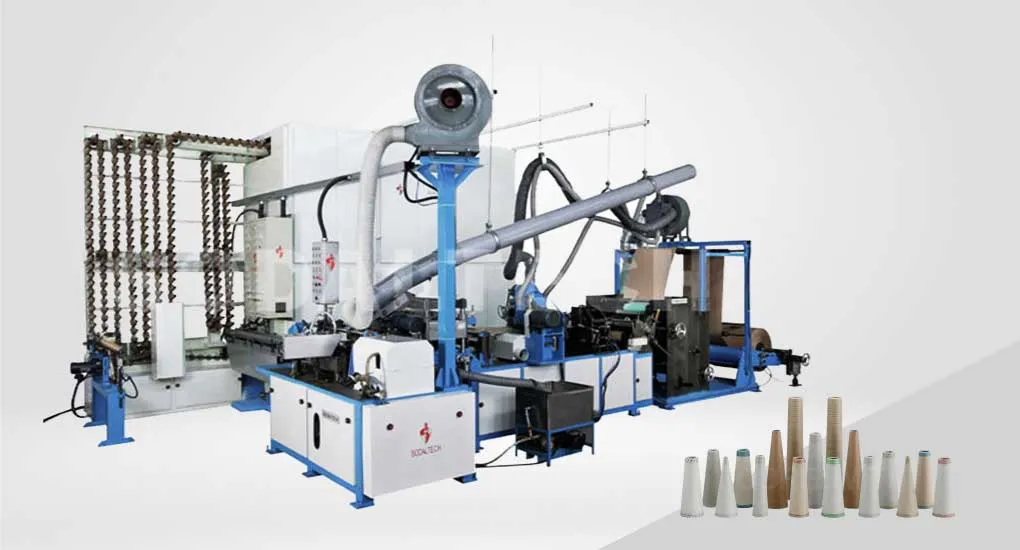

Automatic Paper Cone Making
Machine
with Online Drier
Salient Features
- High-performance machine with output up to 55 cones per minute @ 100% efficiency
- For standard cone tapers such as 9 DEG 15′,5 DEG 57′, 4 DEG 20′ & 3 DEG 30′, etc
- Unique Patented Gripper Winding system which ensures minimum process wastage with less power impact.
- Unique Patented Gripper Winding system which ensures minimum process wastage with less power impact.
- Finger Touch Paper Reel Loader
- Easy Reel Shifter
- Reel Tensioning Devices
- Rapid setting and size changeover facility
- Latest type of glue applicator
- Waste paper exhaust system
- Online Printer for precise single or multicolor Printing with great flexibility of standard designs as shown in the color chart.
- Drier can be heated with multiple sources of energy such as coal or firewood or gas or steam or electric or thermic heating with an automatic energy-saving device.
- Inner logo printer (Optional)
Textile Paper Cone Drier

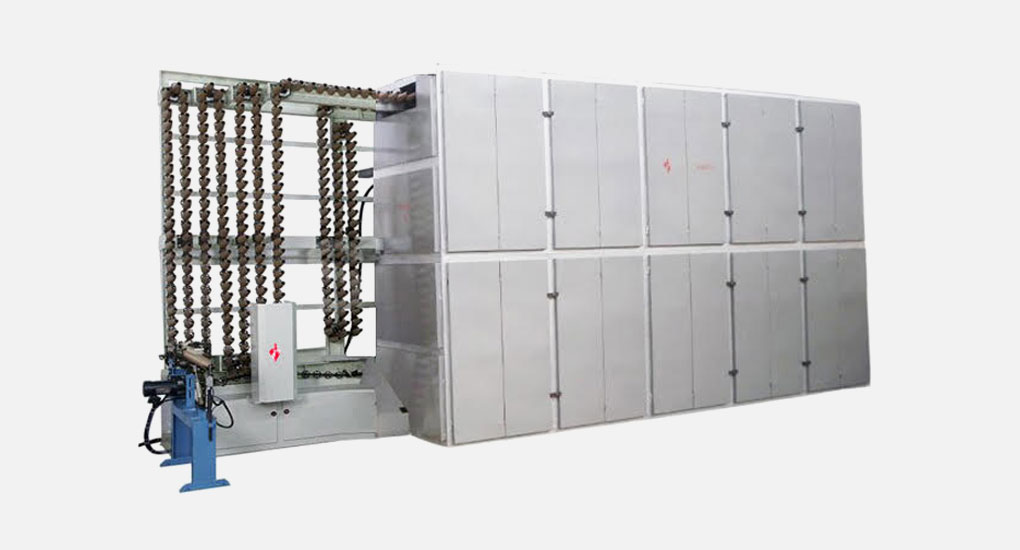

SODALTECH Automatic On-Line Conveyorised Paper Cone Drier Model CD50K (E) with capacity matched to the output of Automatic Cone winding machine. Fitted with suitable electric heaters and blower with motor
Technical Features :
a. Well insulated doors and metal enclosures for energy saving
b. Automatic Temperature control
c. Safety device for overload prevention
d. Provision to operate at variable speeds
e. Auto Control equipment for Chain Conveyor tension
f. Suitable Drive motor with control panel
g. Delivery conveyor for dried cones with automatic nesting of cones
h. Ejection device to transfer nested cones to finishing process
Connected load :
45 KW for heaters
4.07 KW (for motor drives and fan blower
Machine Dimensions : 6.5 metres length x 1.7 metres width x 3.7 metres height (approx.)
Drier working temperature will be 70 Deg C to 90 Deg C depending on the site working conditions

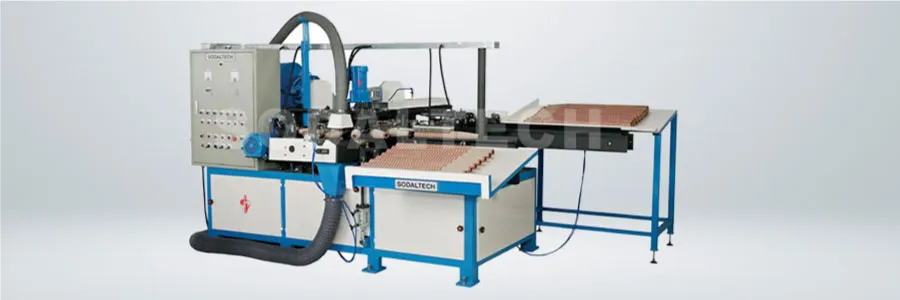

Automatic Paper Cone Finishing Machine (Twin Index)
Salient Features
- Automatic Paper Cone Finishing Machine (Twin Index)
- Automatic feeding of unfinished cones
- Nosing (Top Curling)
- Nose end lubrication
- Bottom burnishing
- Notching device to punch thread guide notch
- Grooving at the base
- Surface velvet finishing
- Automatic stacking of finished cones
- Output : Upto 55 cones per minute

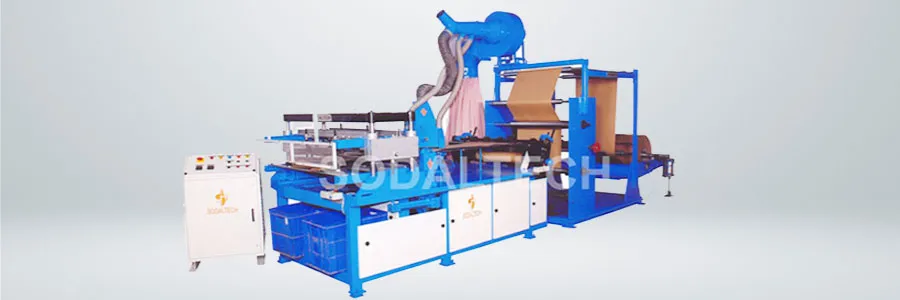

Pattern Developing Machine (Japanese Model)
Salient Features
- Highly versatile to cut patterns for cone tapers 5°57′, 4°20′, 3°30′ etc
- Automatic paper feeding and edge grinding
- Rapid changeover between conicities
- Online printer for precision printing with great flexibility
- Bottom burnishing
- Inner logo printer (Optional)
- Maximum output : 100 patterns per minute

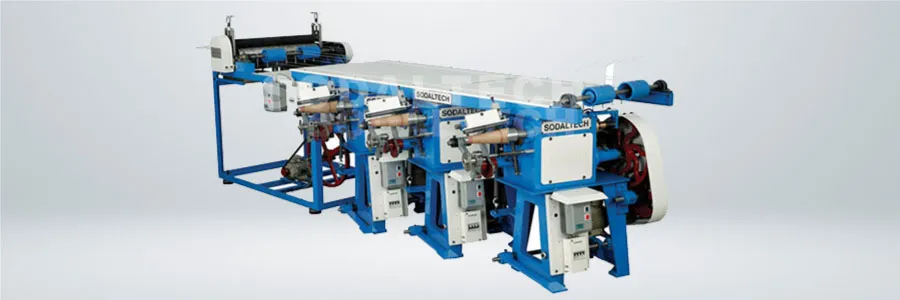

Glueing Machine and Paper Cone Winders (Semi Automatic)
Salient Features
GLUEING MACHINE :
- Glue coating thickness adjustable
- Uniform coating on both sides of cone pattern
PAPER CONE WINDER :
- Single revolution synchronized clutch
- Pneumatic air ejection system
- Faster interchange of sizes

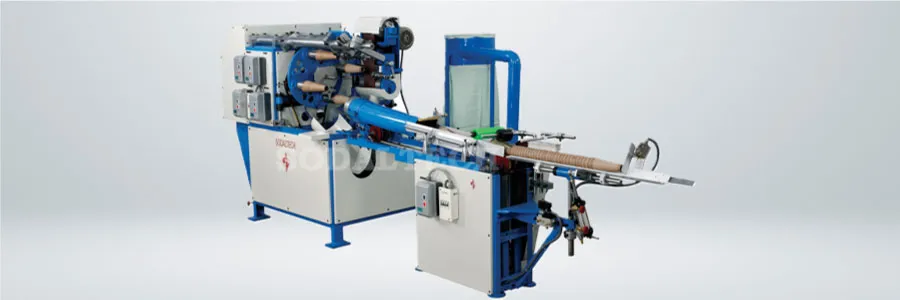

Paper Cone Finishing Machine (Multi Process)
Salient Features
- Base cutting, grooving, bull nosing, velvet finishing and automatic counting cum nesting operations done in a single machine
- Easy interchangeability of mandrels and abrasive belts
- Automatic indexing of cones as per operational sequence
- Bull nosing pressure, cutting depth and nosing axis – all adjustable independently
- Versatile to finish various cone tapers viz., 3°30′, 4°20′, 5°57′ etc
- Mechanism to disengage cutting knife when no cone is in mandrel to improve life of mandrel and knife
- Grooving at the base
- No air ejection when no cone is in mandrel to save compressed air
- No velvet finishing when no cone is in mandrel thus increasing the life of emery belt.
